"Failure is not a
cooling strategy."
Any Strainer. Any Pump. Both A/C Units.
Seven components. Zero single points of failure.
Redundant raw-water intakes draw from independent through-hulls.
Selects either Strainer 1 or Strainer 2 to feed either Pump 1 or Pump 2.
Independent pumps — either one can feed both A/C units.
Takes water from either pump and sends it to both A/C units.
Both units stay cool, regardless of which pump or strainer is in service.
Independent discharge confirms continuous flow at the hull.
Each A/C unit's pump wire runs back to the power box and on to the corresponding pump.

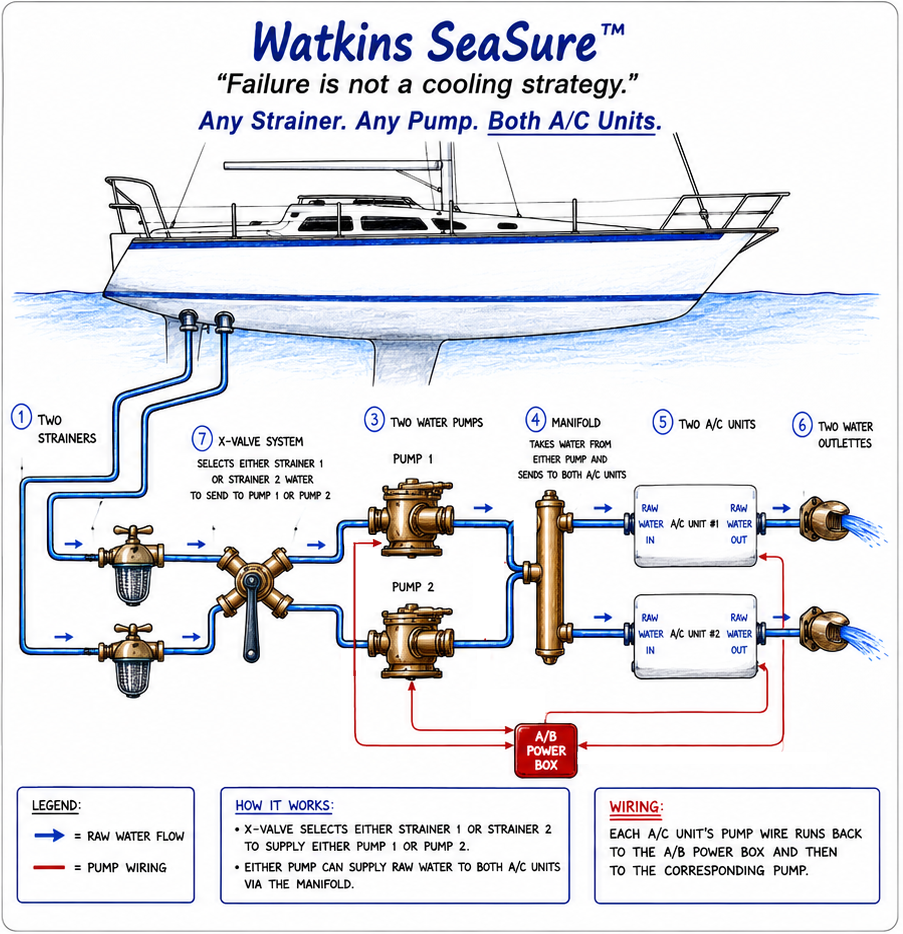

The X-valve selects either Strainer 1 or Strainer 2 to supply either Pump 1 or Pump 2. Either pump can then supply raw water to both A/C units via the manifold.
Each A/C unit's pump wire runs back to the A/B power box and then to the corresponding pump — giving each unit a clean, traceable path to continuous cooling.
Bring SeaSure aboard.
We'll help you spec the right configuration for your vessel and integrate with your existing systems.
Request a Consultation
